FEATURED PROJECT EXPERIENCE / 03

Whole-Home Rewiring

During a major residential remodel, the owner chose to replace the home’s entire electrical system. The jobsite photos connect open-wall rough-in wiring and panel distribution with finish-stage device installation.

Residential rough-in wiring, lighting locations and device boxes in exposed wood framing
Residential / Major RemodelAuthentic Jobsite Photography
Building SettingWhole-home rewiring during a major remodel
Electrical ResponsibilitiesFrom rough-in wiring through finish-stage device installation
Documentation TypeJobsite Construction Photos
Residential rough-in wiring, lighting locations and device boxes in exposed wood framing
JOBSITE DETAIL / 01

Open-Framing Rough-In Wiring

Lighting locations, device boxes and installed cable remain visible within the reconstructed wood framing.

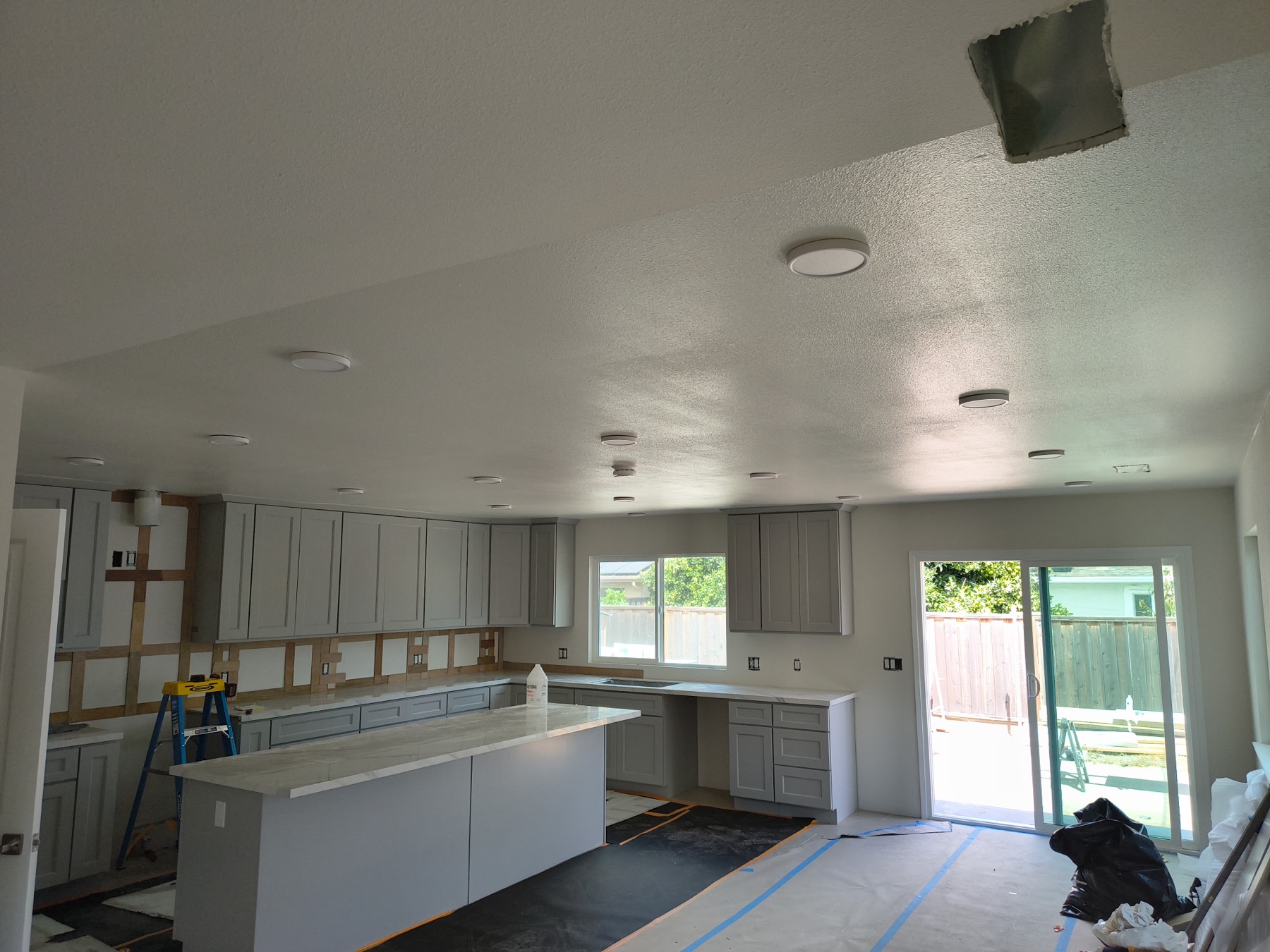

Ceiling lights and device locations during the finish stage of a kitchen remodel
JOBSITE DETAIL / 02

Finish-Stage Device Installation

The remodeled kitchen is nearing completion, with lighting and device locations in place.

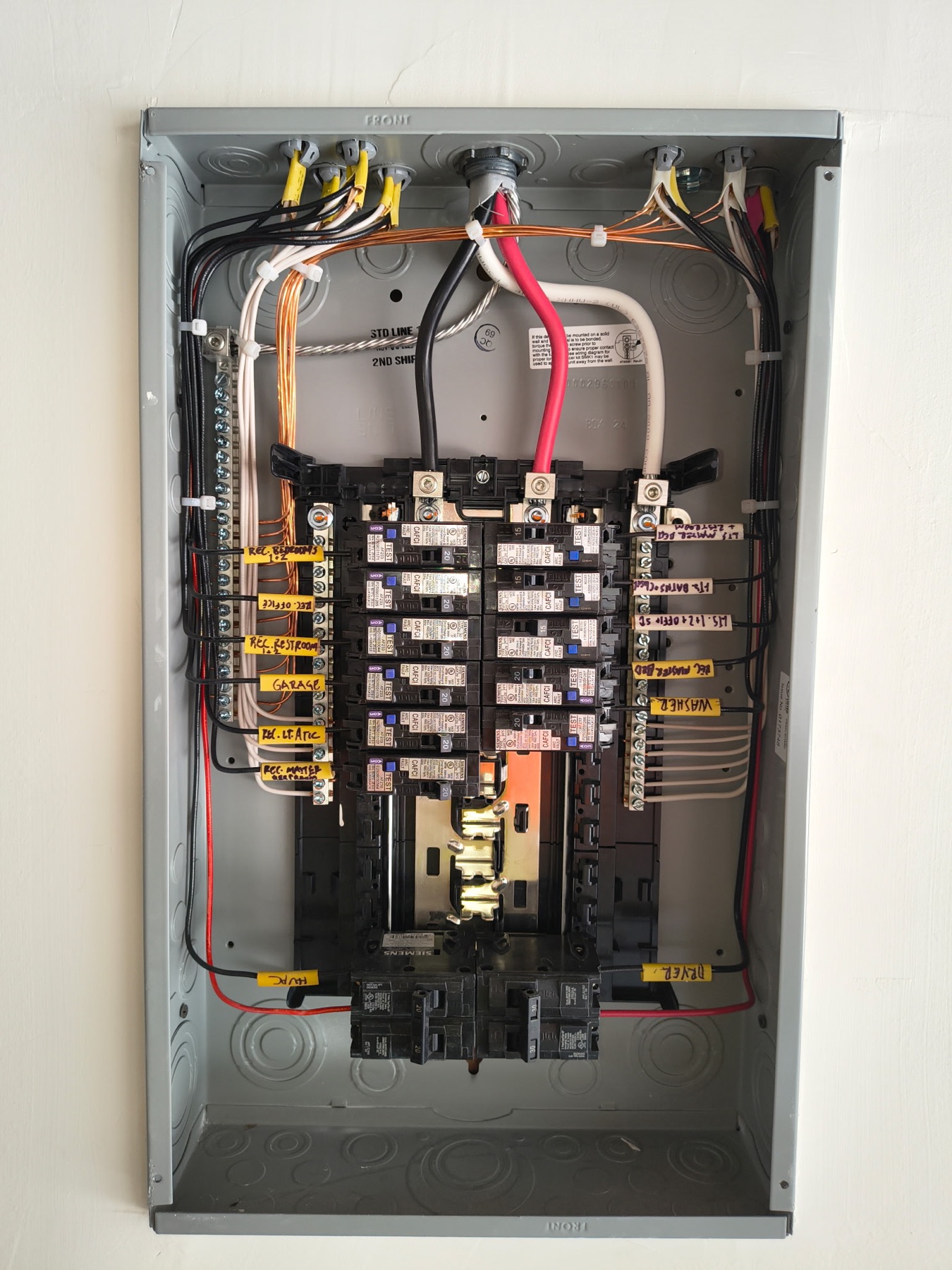

Residential branch circuit panel labeled by room and equipment
JOBSITE DETAIL / 03

Branch Circuit Distribution

Branch circuit conductors and labels clearly correspond to rooms and equipment at the residential panel.
