FEATURED PROJECT EXPERIENCE / 04

Electrical Support for Building Equipment & Control Systems

Building equipment and control systems must connect with the electrical scope at specific locations. These photos show selected power, disconnect and control wiring work without expanding the scope to include mechanical equipment installation or complete specialty system contracting.

Access control enclosures, power supplies and grouped wiring mounted on a backboard
Commercial / Controls & EquipmentAuthentic Jobsite Photography
Building SettingBuilding equipment and control systems project site
Electrical ResponsibilitiesEquipment power and designated wiring interfaces
Documentation TypeJobsite Construction Photos
Access control enclosures, power supplies and grouped wiring mounted on a backboard
JOBSITE DETAIL / 01

Access Control System Backboard

Control enclosures, power supplies and grouped control wiring installed on an equipment backboard.

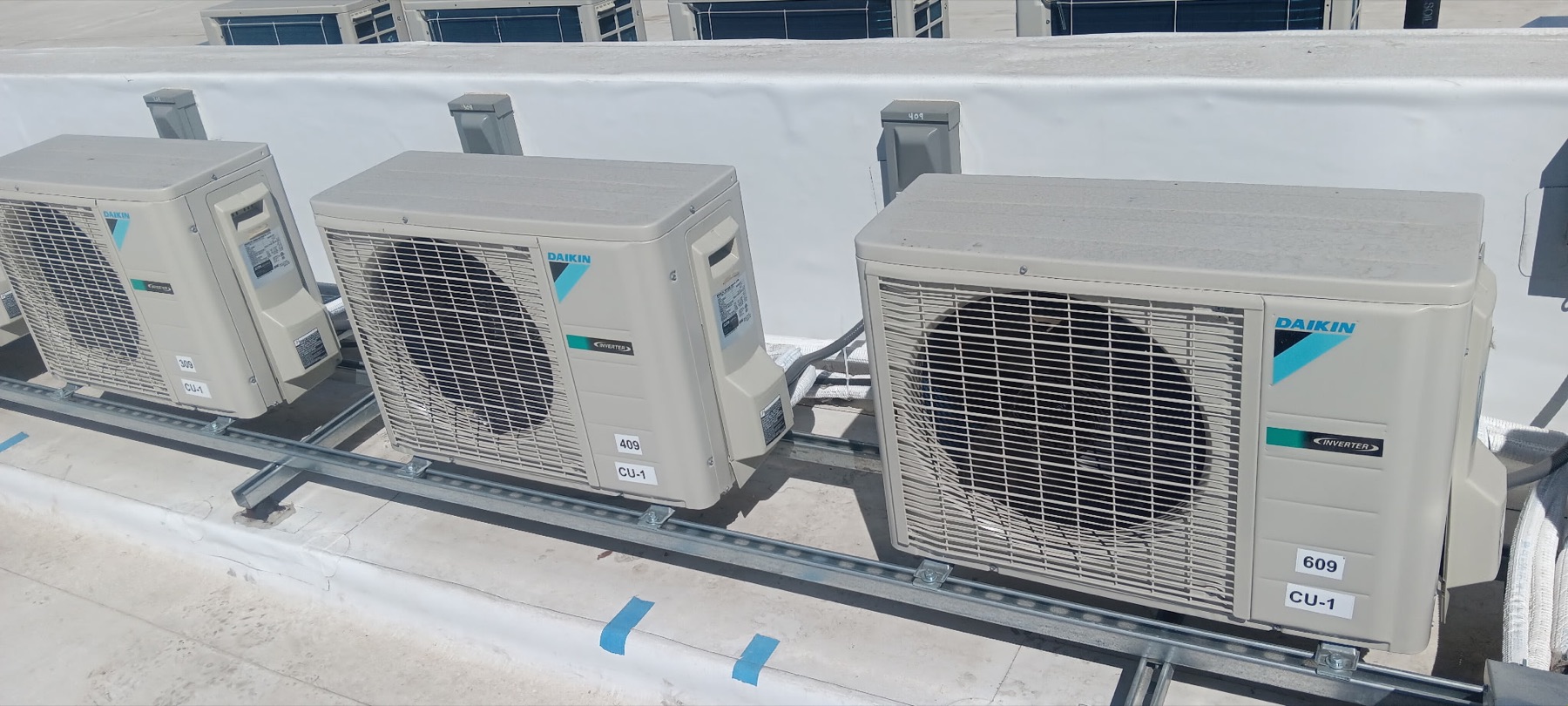

Rooftop equipment with adjacent electrical disconnects
JOBSITE DETAIL / 02

Rooftop Equipment Power

Multiple equipment units with adjacent electrical disconnects and visible connection paths.
